Vox Valvetronix Amps View
the
Repair
Replacing Control Pots
ALT
ALT

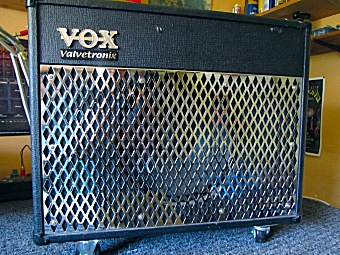

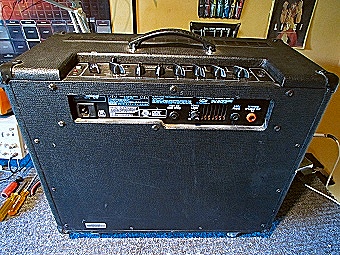

This Vox AD50VT guitar amp came into the shop with a Master Volume control that only worked on part of its rotation.  It also caused loud popping noises.



ALT



This repair story shows how to take out the Valvetronix control circuit board and install a new control pot.




• Vox Valvetronix
VT15 - VT100 Owner's Manual
• Vox Valvetronix
AD50VT Service Manual
