Minimoog Oscillator Board - DC Voltage Test Points

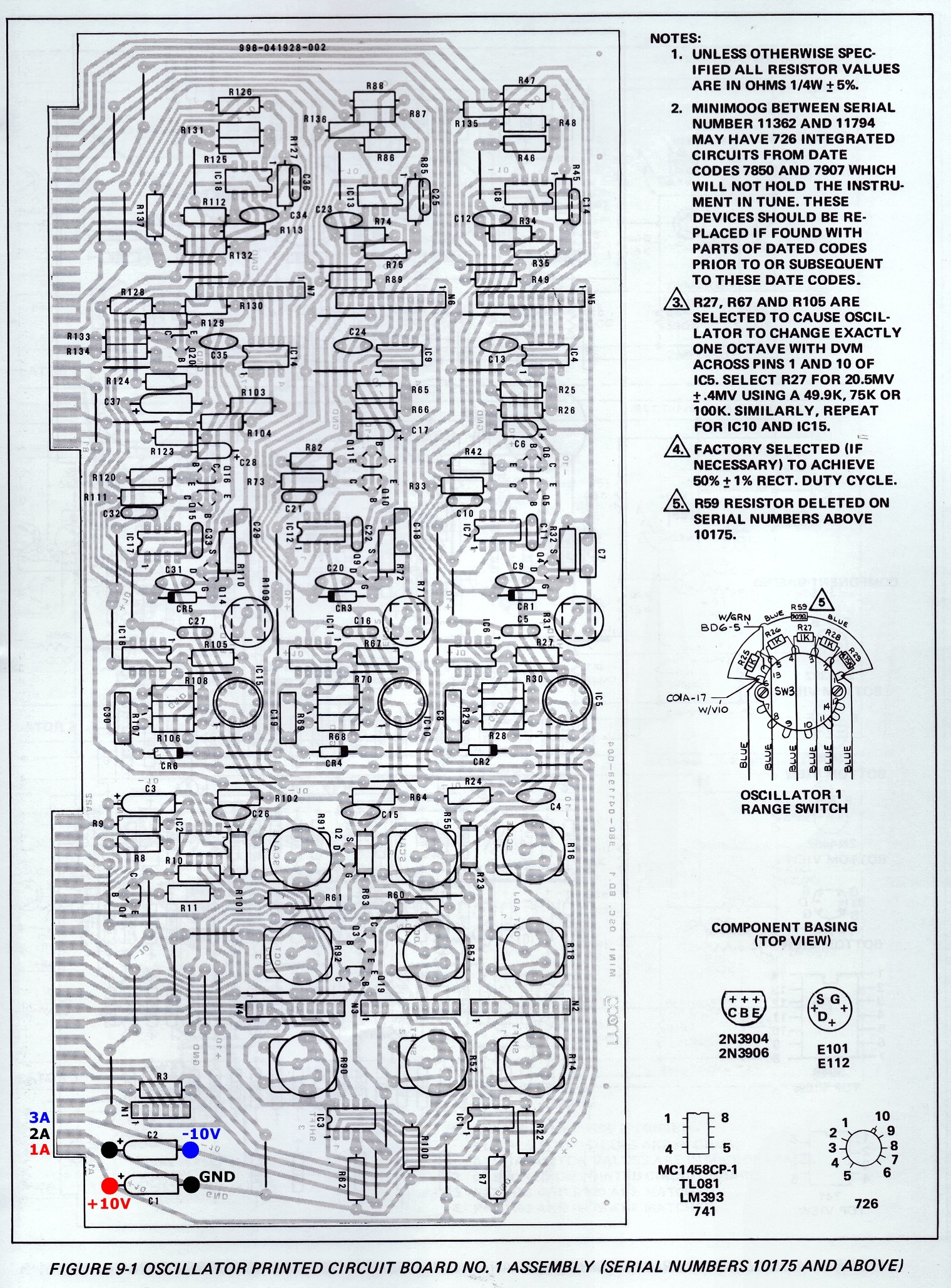

At the bottom of this Minimoog Oscillator PCB, you'll see the test points for calibrating the synthesizer's Power Supply.
It's important to read the voltages on the Oscillator PC Board even though the trimming potentiometers are on the Power Supply PC Board.

Minimoog Oscillator PCB
