IC Replacement 1:  Soldered to Socketed
Last
Page
<
Page
Bottom
Next
Page
>

To remove an Integrated Circuit, use a tiny wire cutters as shown here, cutting the plastic IC package from the solder pins.

Clipping out a bad IC

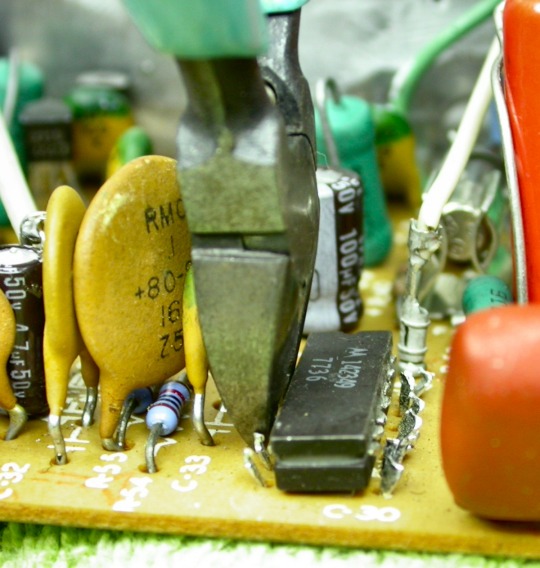

Put the flat side of the cutters against the chip's edge and snip the pins as close to the plastic package as possible.

Clipping out a bad IC

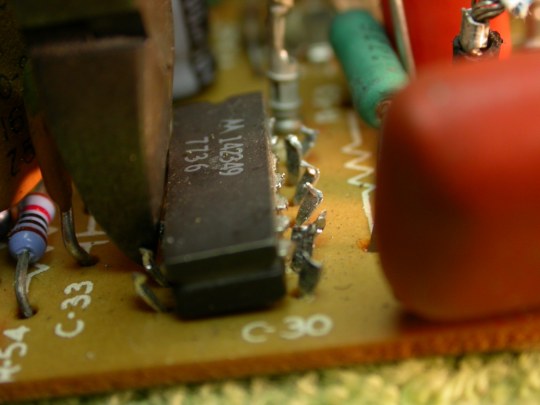

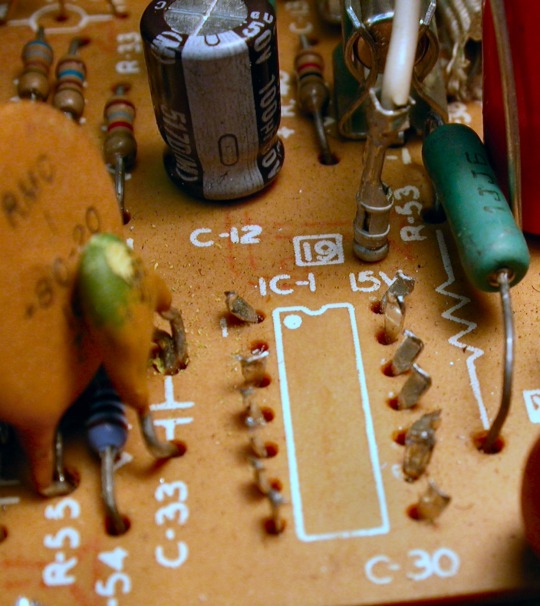

Here, the IC has been cut off from all its pins.  Notice that the location of pin 1 is marked on the board.  If it isn't, make a mark yourself before cutting out the IC.

Clipped IC pins

Next, pull the IC pins out of the circuit board one at a time.

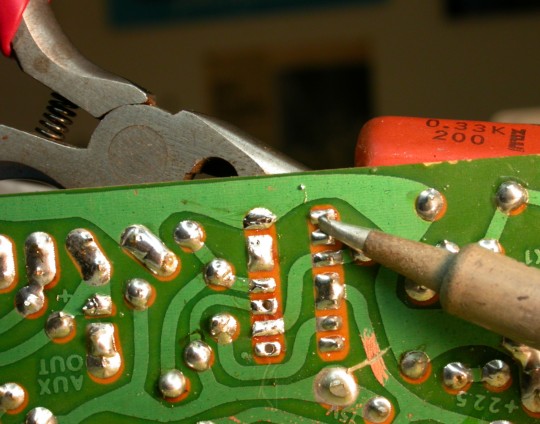

Use a small needle-nose pliers to grab the pin on the component side of the board.  Melt the solder on the foil side of the board and pull out the pin.

Pulling out IC pins

After removing the pins use a solder-sucker to remove all the old solder from the printed circuit pads and holes.

Then wash the printed circuit pads with MEK (methyl ethyl keytone).  Use a solvent dispenser and an acid brush as shown here.


Cleaning out printed circuit holes

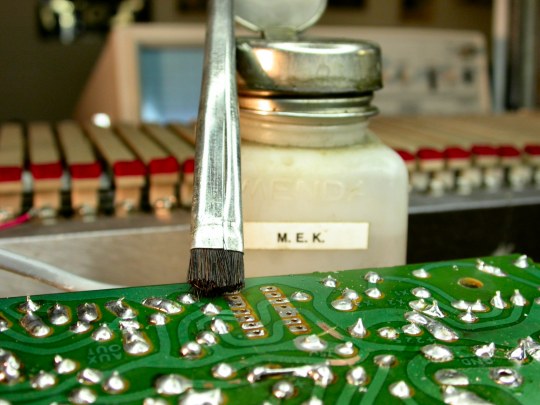

This is a standard acid brush but cut the bristles down to about 1/4" inch in length.   The brush should be stiff enough to scrub dried solder resin and residue from the printed pads.


MEK Acid brush

Repeated heating of printed circuit pads causes them to lift off the circuit board and break.

That's why you should install an IC socket into the cleaned out holes.  Should the IC fail again, no more soldering is required.

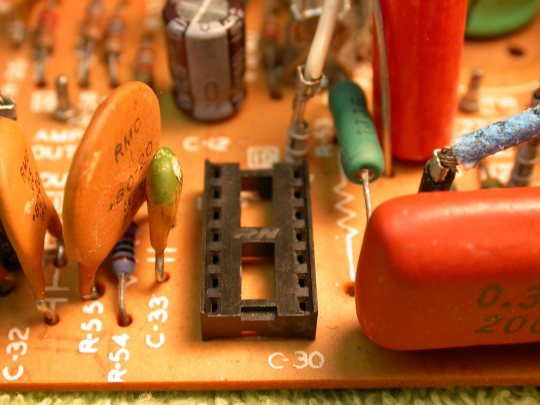

Mount the socket flush against the circuit board.  Align pin 1 of the socket to the pin 1 hole.


Use an IC socket

On the board's underside, bend over two corner pins so the socket doesn't fall out before you solder it.

Then solder the pins to the clean circuit pads.  Hold the socket to the board for the first couple of solders so it remains flush.

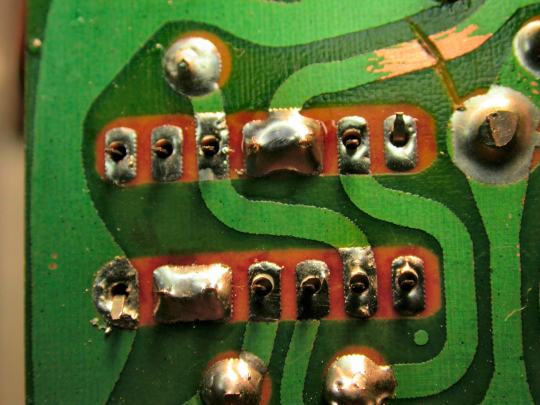

Here you see four of the fourteen socket pins soldered.


Soldering IC socket pins

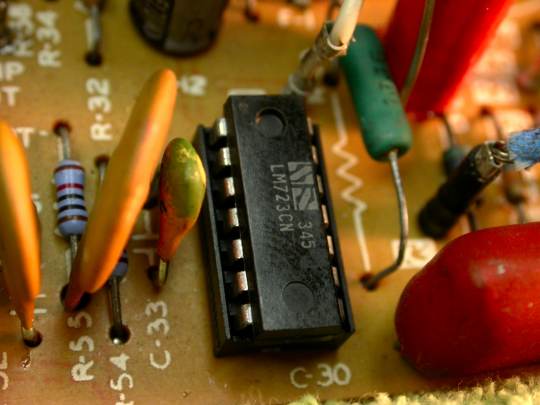

Finally, install the new IC into the new socket.  Again, be sure pin 1 of the IC goes into pin 1 of the socket.








Insert new IC
