Foot
Switches

SPST
McGill, Extra-Long Threaded Bushing
Part # SWFS11-MGS
SWFS11-MGS
Click Photo to Enlarge

SPECS
MANUFACTURER:
McGill
CIRCUIT:
Single Pole
Single Throw
TERMINALS:
Solder or Quick-Connect
BUSHING LENGTH:
5/8" (15.9mm)
ELECTRICAL RATING:
8A@125V or 4A@250v

This is a rare, discontinued part.

PRICE - $17.95 USD each


FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!




SPDT
Carling® PC-Mount, Long Threaded Bushing
Part # SWFS12-CLP
SWFS12-CLP
Click Photo to Enlarge

SPECS
MANUFACTURER:
Carling Switch
CIRCUIT:
Single Pole
Double Throw
TERMINALS:
PC pins (1mm)
BUSHING LENGTH:
9/16" (14.3mm)
ELECTRICAL RATING:
5A@125V or 2A@250v

This is a hard to find Carling Switch.

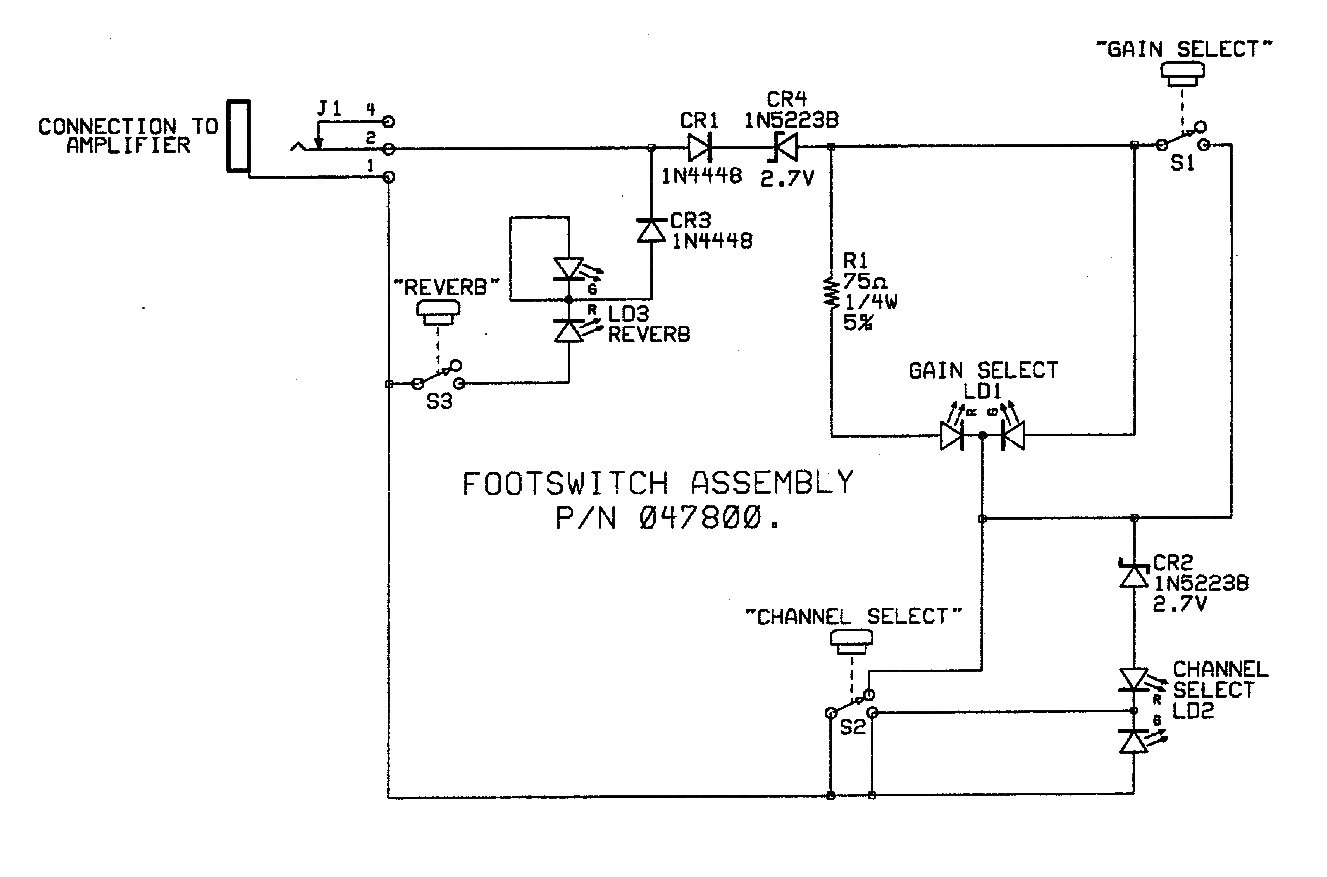

It's the original part (Fender part # 028714) for all three footswitches in the Fender '94 Twin Amp's footswitch assembly (Fender part # 047800).

PRICE - $17.95 USD each


FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!




DPDT
Taiwan, Solder lugs
Part # SWFS22-TWS
SWFS22-TWS
Click Photo to Enlarge

SPECS
MANUFACTURER:
Taiwan
CIRCUIT:
Double Pole
Double Throw
TERMINALS:
Solder lugs
BUSHING LENGTH:
15/32"  (11.6mm)
ELECTRICAL RATING:
4A@125V or 2A@250v

Quantity Pricing starting at $9.90

Select Quantity:


FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!




DPDT
Taiwan, PC Mount
Part # SWFS22-TWP
SWFS22-TWP
Click Photo to Enlarge

SPECS
MANUFACTURER:
Taiwan
CIRCUIT:
Double Pole
Double Throw
TERMINALS:
PC pins (1mm)
BUSHING LENGTH:
15/32"  (11.6mm)
ELECTRICAL RATING:
4A@125V or 2A@250v

Quantity Pricing starting at $9.90

Select Quantity:


FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!




3PDT
China, Solder Lugs
Part # SWFS32-GNS
SWFS32-GNS
Click Photo to Enlarge

SPECS
MANUFACTURER:
China
CIRCUIT:
Triple Pole
Double Throw
TERMINALS:
Solder
BUSHING: LENGTH
15/32"  (11.6mm)

Quantity Pricing starting at $9.90

Select Quantity:


FREE SHIPPING in U.S.A.
WE SHIP WORLDWIDE.
See Shipping for details!




Dual Footswitch Pedal
Marshall® Style
Part # FSMA2
FSMA2
Click Photo to Enlarge

This dual footswitch pedal is a replacement for the Marshall PED-802 or PED-802A pedals which are often used for channel and overdrive switching.

It works with many of the Marshall JCM 900 series amplifiers like the 4100, the Marshall DSL401 amplifier, and many Marshall ValveState amps like the VS100's, the VS102R and the VS230.

The 16-foot long cable has a " stereo phone plug.  One switch shorts the plug's tip contact to its shield.  The other switch shorts the plug's ring contact to its shield.

There are no LED indicators on this pedal, making it compatible with additional, non-Marshall amps.  Neither are there any graphics, making it an economical replacement or spare.

PRICE - $17.95 USD


$5.95 SHIPPING in the U.S.A.
NO INTERNATIONAL SHIPPING




Dual Footswitch Pedal
Vintage Fender® Style, Chrome
Part # FSFN2
FSFN2
Click Photo to Enlarge

This 2-button, Fender style pedal is compatible with all the vintage Fender amps using on/off switches for reverb and vibrato.

Early Twin Reverb®, Deluxe Reverb, Pro Reverb, Super Reverb, and Bandmaster Reverb amps all used this style pedal.

The pedal has a 13-foot dual cable and two RCA plugs.  The pedal housing is chrome plated and the switches are labeled "VIB" and "REV".  Each switch shorts one of the RCA tips to ground.

PRICE - $19.95 USD


$5.95 SHIPPING in the U.S.A.
NO INTERNATIONAL SHIPPING



®See trademark owners  HERE.
