Battery
Holders & Snaps


Roland® Juno-60, Jupiter-6, JX-3P,
MKS-80, SDE-1000, SRV-2000, etc.
1/3N Battery Holder — Surface Mount Solder Tabs
Part # BTH1/3N
BTH1/3N
Click Photo to Enlarge

This solder-in, surface-mount battery holder has gold-plated contact springs with a reliable tension that assures low contact resistance.

The holder also hugs the battery securely to withstand the shock and vibration of playing and traveling.

Just solder this holder to the PC Board to make future battery changes a snap, with no risk of damage to the printed circuit foils.

The holder accepts a size CR1/3N, DL1/3N, LR1/3N, 2L76, 2LR76, 5008L, or K58L lithium cell (preferably without a vinyl wrap).



SPECS
LENGTH:
14.5mm (0.570")
LENGTH WITH TABS:
19.0mm (0.748")
WIDTH:
13.7mm (0.540")
HEIGHT:
12.9mm (0.506")
CONTACTS:
Phosphor Bronze with
Gold Plate
CONTACT WIDTH:
3.2mm (.125")
BASE MATERIAL:
High Temperature Nylon

SELECT -


FREE SHIPPING in U.S.A.
WORLDWIDE SHIPPING
See Shipping for details!



You can buy a HOLDER/BATTERY COMBO on our

SYNTHESIZER BATTERY PAGE



This battery holder fits the following Roland instruments:

ROLAND®
Juno-60 Jupiter-6 JX-3P
MKS-30 MKS-80 GR-700
SDE-1000 SDE-2500 SDE-3000
DDR-30 SRV-2000 Rhodes MK-80
Roland® TR-808 Battery Holder
Holds 3 'AA' Cells  —  Tinned Connecting Wires
Part # BTHAA3
BTHAA3
Click Photo to Enlarge

This pre-wired battery holder is a direct replacement for the holder in the Roland TR-808 Rhythm Composer.

It holds three 'AA' batteries and keeps the 808's patterns and tracks stored in memory while the unit is turned off.


SPECS
LENGTH:
58.0mm (2-9/32")
WIDTH:
48.3mm (1-29/32")
HEIGHT:
17.0mm (21/32")
SCREW HOLE SPACING:
30mm (1-3/16")
CONTACTS:
Self-adjusting, nickel-plated, spring steel
WIRES (Red & Black):
6" long, #26 AWG, 3/16" end strip, Tinned

SELECT -


FREE SHIPPING in U.S.A.
WORLDWIDE SHIPPING
See Shipping for details!

Premium 9V Battery Snaps
Tough,  Durable, Tinned Wires
Part # BTSN9A
BTSN9A
BTSN9A
Click Photo to Enlarge

•  HIGH RELIABILITY 6-PRONG
    NICKEL-PLATED BRASS SNAPS

Your battery and sound stay tight


•  EXTRA-LONG 10" LEADS,
    STRIPPED & TINNED

Easy to solder in,
Extra slack when changing battery


•  UL / CSA 1007, 24-AWG WIRE

No thin wiring that breaks


  SOLDERLESS RING TERMINALS &
    PRECISION RIVETING

No cold solder - No cracks or bursts


  2-PIECE, HARD MOLDED SHELL

Easy to grab - No soft plastic to rip apart


The most common problem with vintage pedals is broken or intermittent battery-snap sets.  Pedal effects undergo hard use and lots of battery changes.  Good snaps are important.

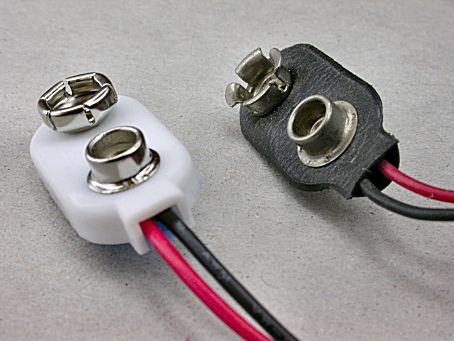

PREMIUM VS. REGULAR BATTERY SNAPS
Premium versus Economy 9-Volt Snaps



®See trademark owners  HERE.
