Epiphone® Electar Zephyr View
the
Repair
Restoration
Epi Electar Zephyr

Here you see an early-40s, art deco, “Electar Zephyr” guitar amp.  Epiphone manufactured many versions of this amplifier between the late 1930s and early 1950s.





Here you see Django Reinhardt plugged into one:

Django

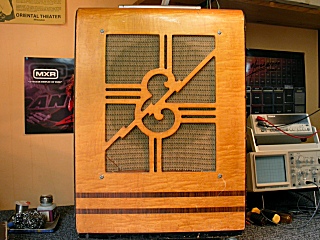

On the Bench

With its blonde maple-veneer cabinet, walnut striping and elaborate trim, this early Zephyr helped blend the guitar player into the most elegant of front lines!

A streamlined, nickel-plated handle resembles a stand light.



Control Panel

The discreet control panel has three inputs into a single-channel amp having a volume and a tone control.  There's no tremolo or reverb.

Its Serial Number is 8372.

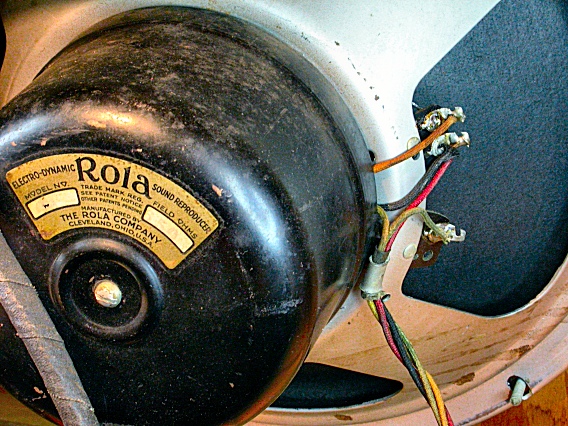

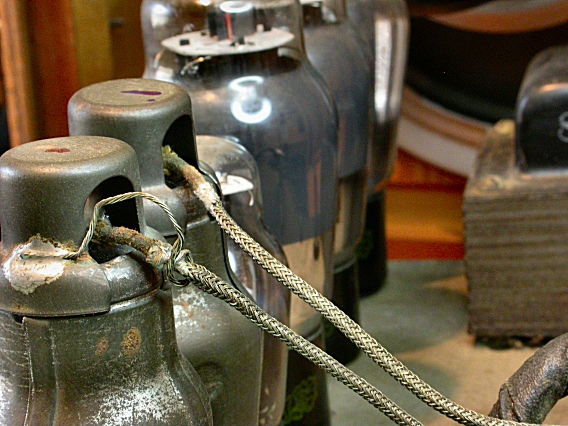

Under the hood, a 12-inch field-coil loudspeaker and an unusual complement of vacuum tubes help make this early Zephyr a notably sweet-sounding 25 watt guitar amp.

Rola Speaker Zephyr Tubes





View the Repair   >
