Casio® Privia® PX-130 View
the
Repair
Broken Power Jack
Casio PX-130

The Casio Privia PX-130 was introduced in 2009.  The 25 pound, 88 key, Tri-sensor scaled, hammer-action piano was the first entry-level Privia with "Linear Morphing", a technology that helps the concert grands, for example, to transition smoothly from soft pianissimos to powerful fortissimos.

This particular PX-130 came into the shop with a broken power jack that prevented the connection of the keyboard's power adapter.

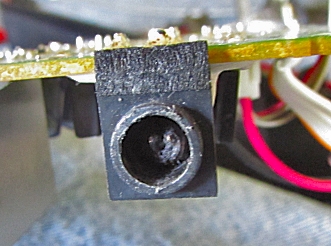

Damaged power jack

Here you see the broken power jack.

Power jack replaced

This is the newly installed Co-ax jack.

Co-ax connectors have a conducting tube around an insulated center contact.

Unlike many co-ax jacks, this jack has a female center contact ‒ the power cord's plug has the male pin.
