YAMAHA® SY77 View
the
Repair
Battery Change

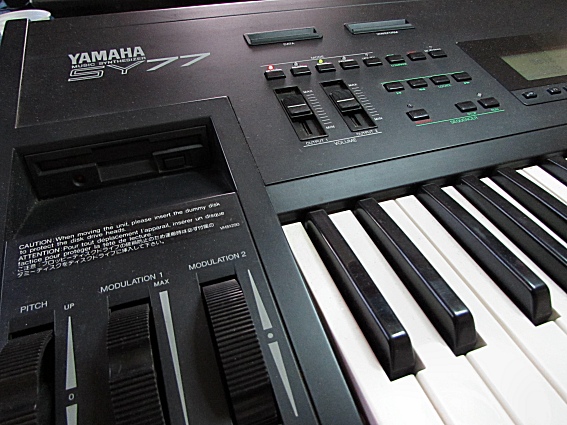

SY77 Wheels

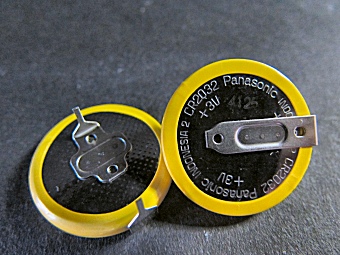

Link to Replacement Battery for
Yamaha SY77, DX7 and others:
BT2032-C15Y
Part # BT2032-C15Y

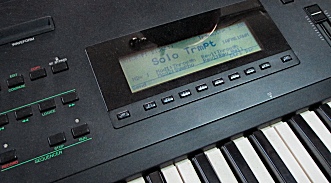

SY77 Display

When this Yamaha SY77 came into the shop, its sound programs were gone.  In the display, their names were all nonsensical character strings.

The SY77 had lost the data it needs to construct sounds and display names.  This is often caused by a low internal battery.  Voltage from the battery holds the sound data in RAM when the SY77 is turned off.



You can restore the original factory sounds by following these Yamaha SY77 reset instructions but you can't get back any custom sounds, settings, or sequences unless you've backed them up using MIDI or the onboard floppy disk.

And unless you install a fresh internal battery, you'll have to reload the factory sounds again and again.

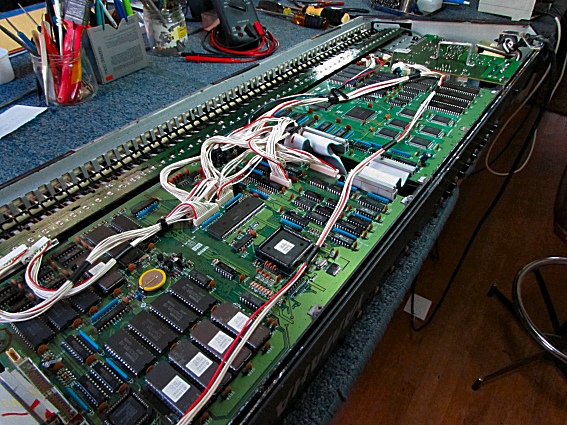

SY77 Exposed
