Korg® SV1
|
View
the
Repair
|
∙ Removing the Keybed
∙ Removing the Keys
∙ Replacing the Vacuum Tube
|
|
|
The
Korg SV-1 Stage Vintage keyboard is a well-designed and user-friendly
stage piano, combo organ and more.
|
|
|
The SV-1 uses Korg's RH-3 ‘Real
Weighted Hammer Action’ keybed.
This keybed is also used in the Korg Kronos, the M3-88 and the M50-88.
The keybed is a heavy lift but must be removed from the SV-1 for almost
any repair job.
|
|
|
This photo shows the
trick to removing a white key from the RH-3 keybed.
Replacement keys for the Korg SV-1 and Kronos can be purchased on our
REPLACEMENT KEYS PAGE.
|
|
|
|

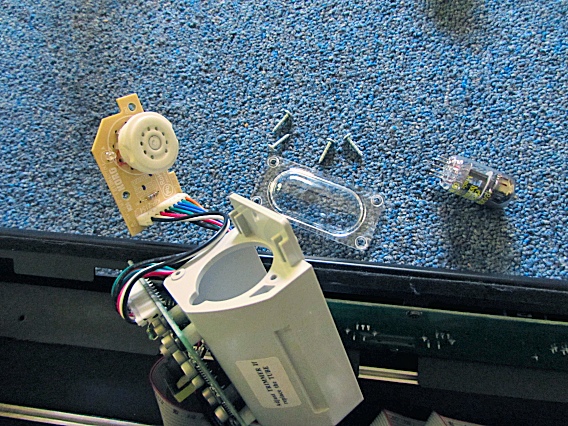

This is the Korg SV-1 Vacuum Tube (Valve) Assembly. The valve is
used, in combination with Digital Signal Processing, to simulate the sound of various amps and speakers,
but only when AMP MODELING is turned ON.
|
|
|
